Smart Camera

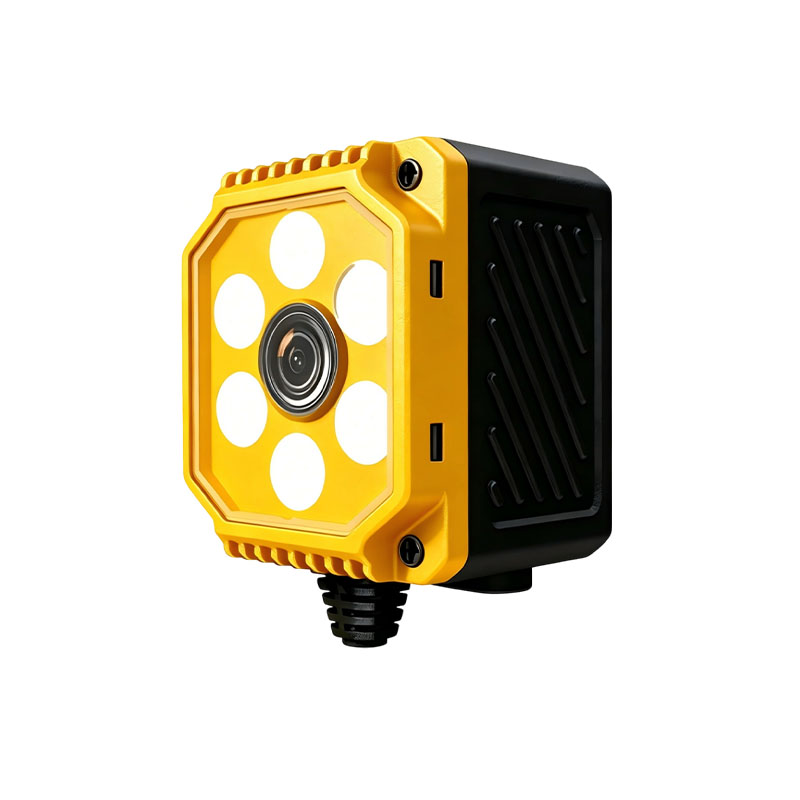

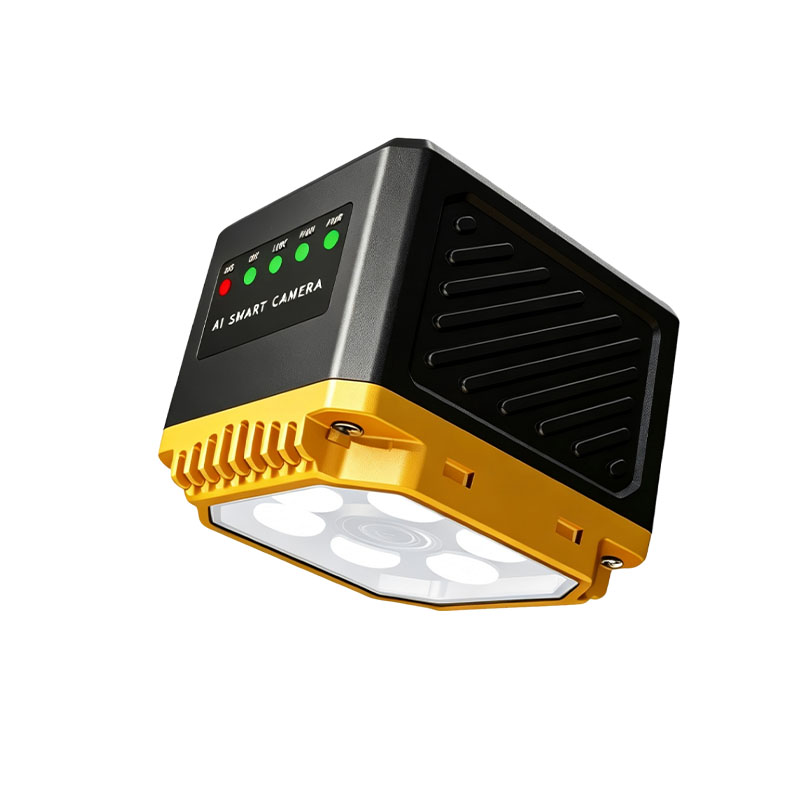

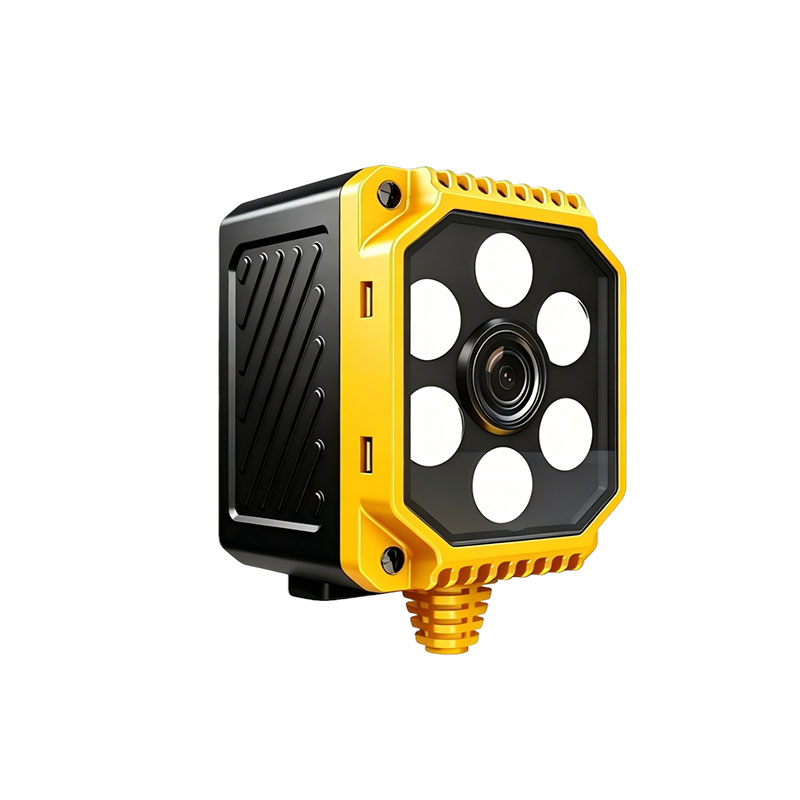

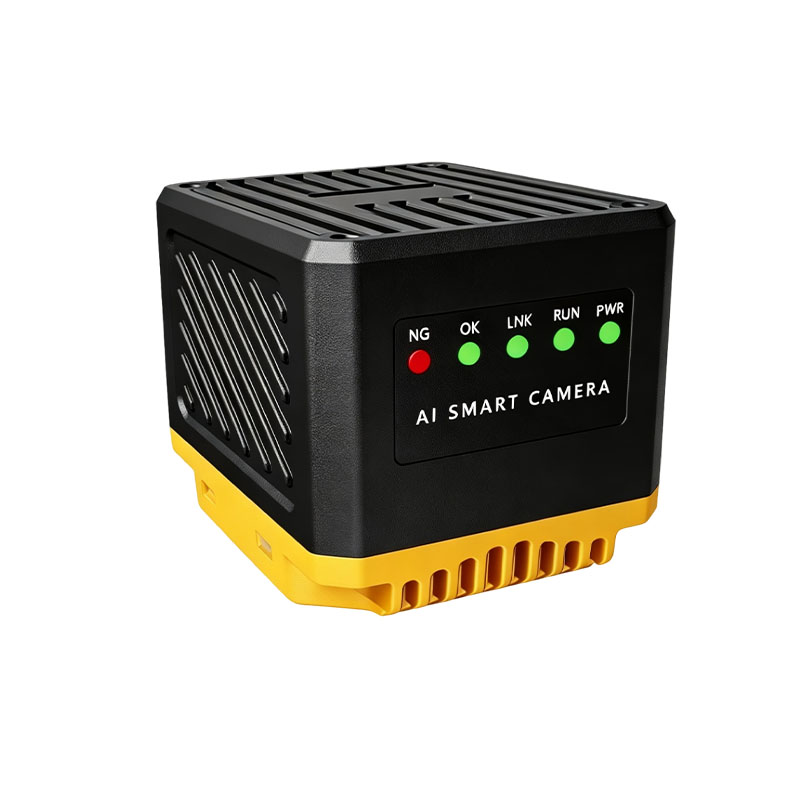

The SC-080 Smart Camera is an embedded intelligent vision system that integrates industrial visual inspection with AI recognition capabilities. Featuring a compact all-in-one design, the unit incorporates a 7-inch industrial touchscreen, a built-in adjustable digital light source, and self-developed AI vision algorithm software. It supports a wide range of inspection functions including presence detection, orientation recognition, dimension measurement, contour matching, optical character recognition (OCR), color recognition, blob counting, wire sequence inspection, and more. The housing is manufactured using die-cast aluminum alloy with a fully sealed structure, achieving an IP65 protection rating for reliable operation in complex industrial environments. The device provides 1 digital input and 3 digital outputs, and supports Modbus-RTU serial communication for real-time data exchange and coordinated control with PLCs and other external automation equipment.-
1. Highly Integrated All-in-One Design
Integrates the industrial camera, controller, light source, and 7-inch touchscreen into a single device – eliminating the need for external industrial PCs or separate light source controllers. This significantly simplifies system architecture, reduces deployment costs, and minimizes floor space requirements.
2. Comprehensive Functionality for Diverse Applications
Equipped with 15+ built-in algorithm tools covering contour matching, grayscale/color area analysis, width measurement, blob counting, OCR, angle positioning, target location, wire sequence inspection, and AI-based learning. It is well-suited for product assembly verification, carrier tape packaging inspection, incoming material validation, rapid dimension measurement, cable wire color recognition, and many other industrial vision tasks.
3. User-Friendly Operation with Zero-Code Configuration
All parameter settings and algorithm adjustments can be configured directly via the 7-inch touchscreen – no programming required. The built-in sample learning and model training feature enables users to quickly train and deploy AI models on-site through simple annotation, significantly lowering the barrier to adoption.
4. Industrial-Grade Reliability for Harsh Environments
The die-cast aluminum housing with fully sealed construction delivers an IP65 protection rating, providing excellent dustproof and waterproof performance. It operates reliably under challenging conditions such as vibration, dust, and high humidity. The integrated digital light source adapts flexibly to varying ambient lighting conditions.
5. Robust Communication and Expandability
Supports standard Modbus-RTU serial communication for seamless integration with PLCs, robotic arms, and other automation equipment. With 1 digital input and 3 digital outputs, it supports trigger-based image capture and real-time result output, making it easy to incorporate into various automated production lines.
6. Continuous Upgrades with AI Empowerment
Powered by proprietary AI vision algorithms, the device supports firmware updates and AI model upgrades via USB flash drive or remote network connection. With cloud-based online training, users can continuously refine model accuracy based on actual inspection requirements, adapting to product changes and evolving quality standards on the production line.
